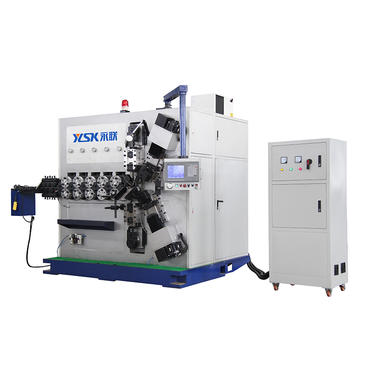

YLSK-7160 CNC SPRING COILING MACHINE

YLSK-7160CNC computer spring machine is mainly used for producing various types of coil springs, Equipped with Taiwan Yitu controller system & Japanese Servo Motor.

Enquire Now

Specification

Parameters/Model YLSK-7160CNC
Wire diameter (mm) Ø6.0～Ø16.0
Axis Count 7 Axis
Outside Diameter (mm) Max 220
Max feeding Length Unlimited
Max feeding Speed 0-75 m/min
Max. Cutting Speed 50 times/min
Max Roller Pressure 0~6 tons adjustable
Program Storage 999 Max
Instruction value of wire feed ±0.01～±9999.99mm
Instruction value of cam ±0.10～±359.90
Servo motor of wire feed (kw) 37
