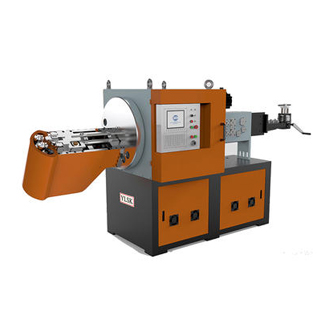

Arswan, a leading 2D/3D Wire Bending Machine Manufacturers in India, suppliers, dealers, distributors and traders in India, We are offering the high quality of wire bending machine. This machine is used for precisely bending metal wire into the variety of shapes and sizes into the flat, two-dimensional plane (2D) with added depth and curvature to create complex three-dimensional forms (3D) as well.
Our machines are also controlled by computer numerical control (CNC) for improving higher accuracy and intricate designs as well. This accurate working mechanism of this machine can makes multiple types of parts such as hooks, cages and complex frame structure as per the depending on requirement and desired shapes. Let’s check out our multiple types, multiple benefits, advanced features and modern applications also!
As one of the leading wire bending machine manufacturers and suppliers in India, we offer a wide range of machines designed to enhance structural precision and deliver high accuracy for complex tasks, including:
YLSK-2D-406 CNC Wire Bending Machine is specialized in making 2D Wire forms with high speed and high precision.The computer interface can change the program while adjusting the speed in running condition. Easy to program.
Learn More
YLSK-2D-410 CNC Wire Bending Machine is specialized in making 2D Wire forms with high speed and high precision.The computer interface can change the program while adjusting the speed in running condition. Easy to program.
Learn MoreFor more clarification about our technical information of wire bending machine (2D/3D), here we have mentioned below a technical sheet such as:
| Machine Model | YLSK-5120 |
|---|---|
| Machining wire diameter (mm) | Ø4.0 ~ Ø12.0 MM |
| Axis Count | 5 Axis |
| Cutting servo motor | 2.7KW (plus reducer) |
| Bending servo motor | 2.7KW (plus reducer) |
| Wire feeding servo motor | 5.0KW (plus reducer) |
| Rotation servo motor | 5.0KW (plus reducer) |
| Bending head rotation motor | 1.0KW (plus reducer) |
| Wire Feeding Length | Unlimited |
| Wire Rotate Degree | 360 Degree |
| Bending Head rotation | Clockwise-Anticlockwise |
| Machine size (mm) | 3950x1250x1800 |
| Weight (kg) | 7000 |
| Wire feeding Rollers | 4 Pairs/Outside Diameter-120mm |
| Power | 3P/380V/50HZ |
| Controller System | Hust-Taiwan |
As one of the top wire bending machine distributors and traders in India, we offer a variety of advanced machines equipped with the latest technology to ensure superior performance. Below are some of the key features:
| Feature | Description |
|---|---|
| Bending Axes | In this machine, we have used number of axes (2 or 3) and it uses for controlling wire bending, determining the complexity of achievable shapes. |
| Bending Speed | This machine has higher bending rate where it can complete individual bends, typically measured in bends per minute, affected by the complexity of the shape. |
| Precision | The machine’s accuracy in replicating wire shapes, often represented by a tolerance value (e.g., ±0.1mm for 2D, ±0.02mm for 3D). |
| Wire Diameter Range | The range of wire thicknesses (diameter) that the machine can handle, typically ranging from 1mm to 12mm or more. |
| Control System | WE have used new technology in this machine, with 2D machines often having basic CNC or PLC controls, while 3D machines utilize advanced CNC with 3D programming. |
| Tooling Type | For simplifying the whole working system, we have used multiple tools to bend the wire, including dies, rollers, and cams for 2D machines, or rotating multi-tool heads for 3D machines. |
| Automation Level | The extent to which the machine automatically feeds, bends, and unloads materials, with 3D machines being fully automated while 2D machines often require manual input. |
The former Wire Bending machine (2D/3D) traders and distributors in India, our latest technological machines are highly used in multiple types of applications such as:
The maximum wire diameter varies, but most machines can handle wire sizes from 1mm to 12mm. Some specialized machines can accommodate larger diameters based on their capabilities.
Yes, many wire bending machines are designed for batch production, offering automation and repeatability to handle high-volume runs with consistent results.
Yes, wire bending machines can form different wire shapes such as circles, squares, and custom shapes, depending on the machine’s versatility and tooling options.
While basic operation is straightforward, advanced machines may require operator training. Proper training ensures safety, accuracy, and optimal machine performance.
Arswan is a trusted name in India for high-quality 2D and 3D wire bending machines. As a leading manufacturer, supplier, distributor, and dealer, we specialize in delivering advanced wire bending solutions built with state-of-the-art technology. Our machines are engineered for precision, speed, and durability—making them ideal for a wide range of industries, from automotive to construction. Whether you need to create simple bends or intricate wire forms in high volumes, our equipment ensures reliable performance and efficiency. Explore our full range of wire bending machines or get in touch with our experts to find the perfect solution for your needs.
